以下是時代超群一個60系列有霍爾直流無刷電機的匯總。
1、60BL100S15-230TF0（老型號60BL100-230）
|
型號
Model |
老型號
old Model |
額定電壓
Rated
Voltage
(V) |
額定功率
Rated
Power
(W) |
額定轉速
Rated
Speed
(rpm) |
額定轉矩
Rated
Torque
(Nm) |
額定電流
Rated
Current
(A) |
空載電流
Non-Load
Current
(A) |
空載轉速
Non-Load
Speed
(rpm) |
|
60BL100S15-230TF0 |
60BL100-230 |
24 |
150 |
3000 |
0.5 |
8 |
0.8 |
4000 |

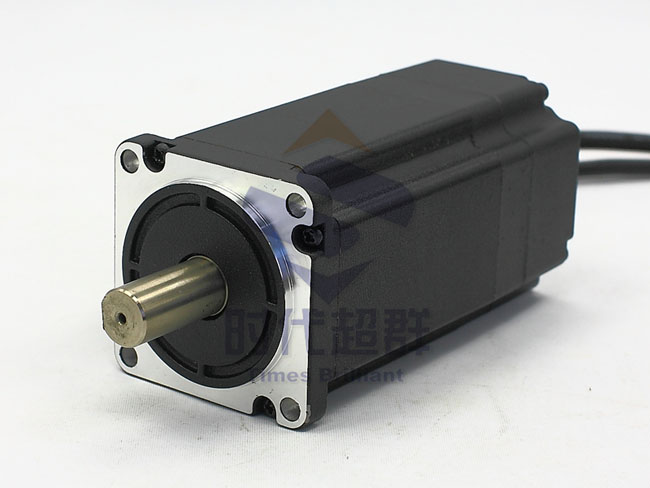

參考圖
2、60BL100S15-230TF0B（老型號60BL100-230SC）
|
型號
Model |
老型號
old Model |
額定電壓
Rated
Voltage
(V) |
額定功率
Rated
Power
(W) |
額定轉速
Rated
Speed
(rpm) |
額定轉矩
Rated
Torque
(Nm) |
額定電流
Rated
Current
(A) |
空載電流
Non-Load
Current
(A) |
空載轉速
Non-Load
Speed
(rpm) |
|
60BL100S15-230TF0B |
60BL100-230SC |
24 |
150 |
3000 |
0.5 |
8 |
0.8 |
4000 |

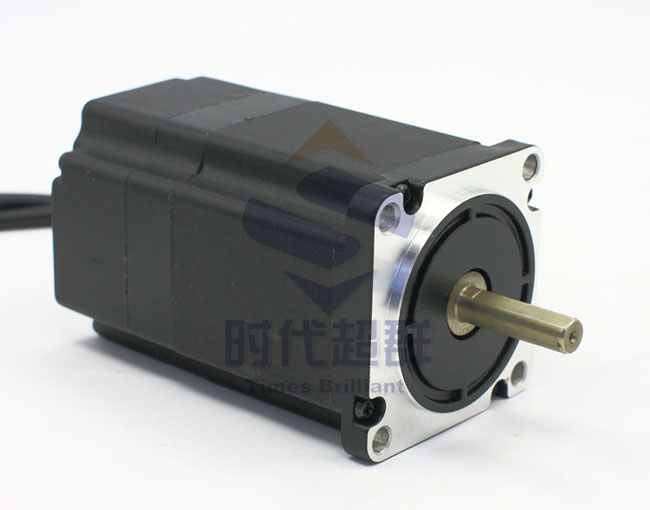

參考圖
3、60BL120S25-430TF0（老型號60BL120-430）
|
型號
Model |
老型號
old Model |
額定電壓
Rated
Voltage
(V) |
額定功率
Rated
Power
(W) |
額定轉速
Rated
Speed
(rpm) |
額定轉矩
Rated
Torque
(Nm) |
額定電流
Rated
Current
(A) |
空載電流
Non-Load
Current
(A) |
空載轉速
Non-Load
Speed
(rpm) |
|
60BL120S25-430TF0 |
60BL120-430 |
48 |
250 |
3000 |
0.75 |
7 |
0.5 |
3500 |

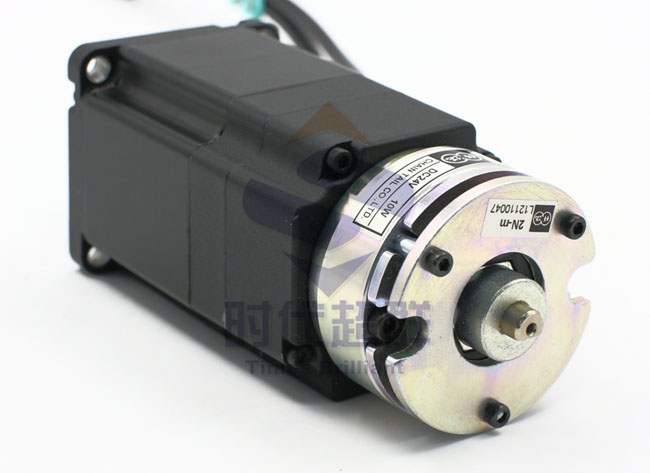

參考圖
4、60BL120S25-3130TF0（老型號60BL120-3130）
|
型號
Model |
老型號
old Model |
額定電壓
Rated
Voltage
(V) |
額定功率
Rated
Power
(W) |
額定轉速
Rated
Speed
(rpm) |
額定轉矩
Rated
Torque
(Nm) |
額定電流
Rated
Current
(A) |
空載電流
Non-Load
Current
(A) |
空載轉速
Non-Load
Speed
(rpm) |
|
60BL120S25-3130TF0 |
60BL120-3130 |
310 |
250 |
3000 |
0.75 |
1.5 |
0.2 |
3500 |
參考圖
無刷直流電動機的應用領域在擴大,應用水平在提高。在各種高檔自動門的門禁控制系統中,在一些包裝機械、印刷機械的控制系統中,在一些自動武器控制系統中,正在逐步采用無刷電機驅動。
|
