| 混合式步進電機型號大全 |
| 2013年12月26日 |
 |
 |
 |
|
20系列步進電機
點擊圖片進入 |

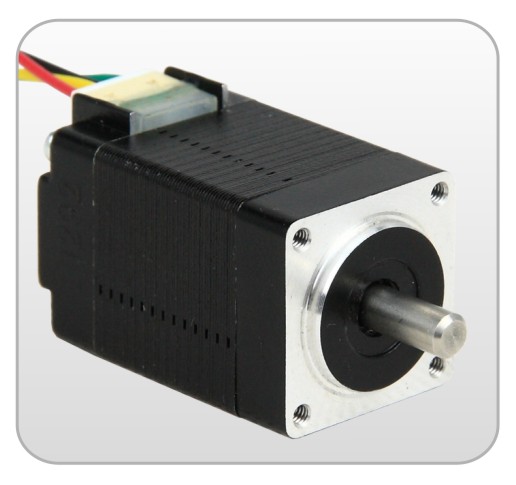

28系列步進電機
點擊圖片進入 |

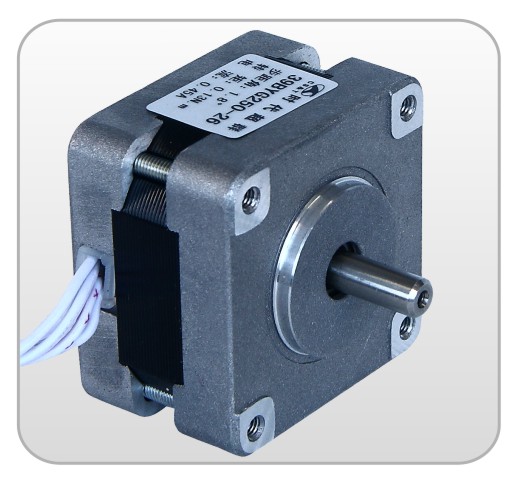

39系列步進電機
點擊圖片進入 |
 |
 |
 |
|

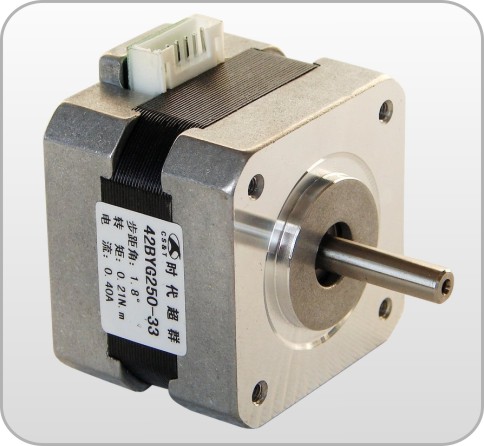

42系列步進電機
點擊圖片進入 |

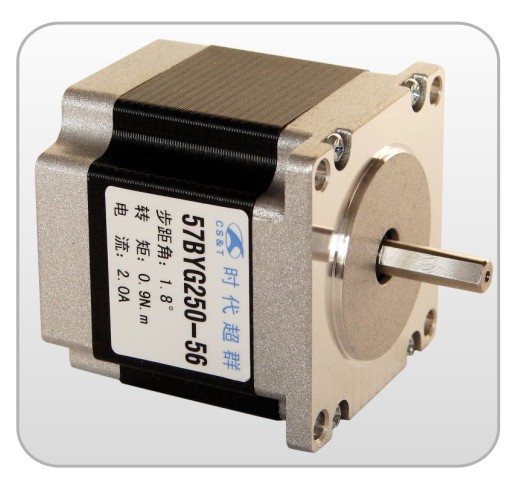

57系列步進電機
點擊圖片進入 |
60系列步進電機
點擊圖片進入 |
|
型號
Model |
相數
Phase |
步距角
Step Angle |
靜轉矩
Torque
(Nm) |
電流
Current
(A) |
相電阻
Resistance
(Ω) |
相電感
Inductance
(mH) |
鏈接
|
|
20HBP33BJ4-TR0 |
2 |
1.8° |
0.02 |
0.6 |
6.5 |
1.5 |
|
|
28HBP34BJ4-TR0 |
2 |
1.8° |
0.06 |
0.75 |
6.2 |
3.2 |
|
|
35HBP22BL4-TR0 |
2 |
1.8° |
0.06 |
0.85 |
5.8 |
4.0 |
|
|
35HBP27BL4-TF0 |
2 |
1.8° |
0.09 |
1.5 |
1.9 |
14.0 |
|
|
35HBP45BL4-TF0 |
2 |
1.8° |
0.26 |
1.1 |
3.0 |
4.3 |
|
|
39HBS22BJ4-TR0 |
2 |
1.8° |
0.1 |
0.48 |
24.2 |
26.0 |
|
|
39HBS22BJ4-DF0 |
2 |
1.8° |
0.1 |
0.48 |
24.2 |
26.0 |
|
|
39HBS26BJ4-TR0 |
2 |
1.8° |
0.13 |
0.45 |
26.0 |
30.0 |
|
|
39HBS30BL4-TF0 |
2 |
1.8° |
0.22 |
0.45 |
21.0 |
42.0 |
|
|
39HBS35BL4-TF0 |
2 |
1.8° |
0.2 |
0.6 |
16.0 |
30.0 |
|
|
39HBS45BL4-TF0 |
2 |
1.8° |
0.31 |
0.6 |
42.0 |
80.0 |
|
|
42HBS33BJ4-TR0 |
2 |
1.8° |
0.21 |
0.4 |
28.5 |
32.0 |
|
|
42HBS33BJ4-TR1 |
2 |
1.8° |
0.21 |
0.4 |
28.5 |
32.0 |
|
|
42HBS33BJ4-TR2 |
2 |
1.8° |
0.21 |
0.4 |
28.5 |
32.0 |
|
|
42HBS40BJ4-TR0 |
2 |
1.8° |
0.33 |
0.4 |
26.8 |
32.0 |
|
|
42HBS40CJ4-TR0 |
2 |
1.8° |
0.33 |
0.4 |
28.8 |
32.0 |
|
|
42HBP47BL4-DR0 |
2 |
1.8° |
0.38 |
1.2 |
1.8 |
4.5 |
|
|
42HBS48BJ4-TR0 |
2 |
1.8° |
0.5 |
0.4 |
28.5 |
80.0 |
|
|
42HAP34BL4-TR0 |
2 |
0.9° |
0.22 |
1.33 |
2.0 |
4.5 |
|
|
42HAP40BL4-TR0 |
2 |
0.9° |
0.33 |
1.5 |
2.4 |
4.0 |
|
|
42HAP47BL4-TR0 |
2 |
0.9° |
0.44 |
1.5 |
3 |
6.5 |
|
|
57HBS50BJ4-TR0 |
2 |
1.8° |
0.7 |
0.6 |
12.3 |
40.0 |
|
|
57HBS51AL4-TF0 |
2 |
1.8° |
0.7 |
0.6 |
14 |
25 |
|
|
57HBP56AL4-TF0 |
2 |
1.8° |
0.9 |
2.0 |
1.2 |
4.5 |
|
|
57HBP56AL4-TF1 |
2 |
1.8° |
0.9 |
2.0 |
1.2 |
4.5 |
|
|
57HBP56AL4-TF2 |
2 |
1.8° |
0.9 |
2.0 |
1.2 |
4.5 |
|
|
57HBP56AL4-TF3 |
2 |
1.8° |
0.9 |
2.0 |
0.8 |
4.5 |
|
|
57HBP56AL4-DF0 |
2 |
1.8° |
0.9 |
2.0 |
0.8 |
4.5 |
|
|
57HBP76AL4-TF0 |
2 |
1.8° |
1.5 |
3.0 |
0.6 |
10.5 |
|
|
57HBS76AL4-TF0 |
2 |
1.8° |
1.5 |
3.0 |
0.6 |
10.5 |
|
|
57HBP76AL4-TF1 |
2 |
1.8° |
1.5 |
3.0 |
0.6 |
10.5 |
|
|
57HBP76AL4-DF0 |
2 |
1.8° |
1.5 |
3.0 |
0.6 |
10.5 |
|
|
57HBP80AL4-TK0 |
2 |
1.8° |
2.0 |
3.0 |
0.6 |
10.5 |
|
|
57HBP102AL4-TF0 |
2 |
1.8° |
2.2 |
3.0 |
0.8 |
3.1 |
|
|
57HBP112AL4-TF0 |
2 |
1.8° |
2.4 |
3.0 |
0.9 |
3.8 |
|
|
57HBN76AL8-TF0 |
2 |
1.8° |
1.5 |
3.0 |
1.2 |
10.5 |
|
|
57HCY79AL3-TF0 |
3 |
1.2° |
1.2 |
4.0 |
0.17 |
1.5 |
|
|
60HBP54AL4-TR0 |
2 |
1.8° |
1.5 |
2.0 |
0.5 |
1.6 |
|
|
60HBP67AL4-TR0 |
2 |
1.8° |
1.2 |
2.0 |
0.6 |
3.0 |
|
|
60HBP87AL4-TF0 |
2 |
1.8° |
2.5 |
3.5 |
0.8 |
3.5 |
|
|
